Social Network Sharing

; Our model must have commands that tell it to setup the model, and to run the model

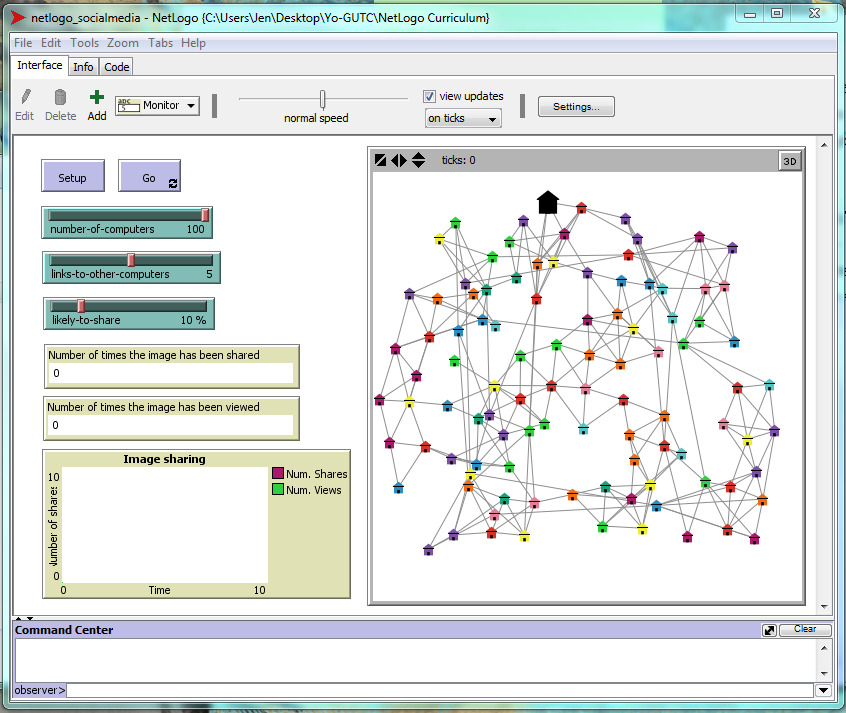

; In the interface tab, add a button; In Command, write setup
; In the interface tab, add a button; In Command, write go; Check the forever and disable until ticks start boxes

; Our model relies on the user to use Sliders to determine the number of computers, number of
; links, and likelihood of sharing an image for our model.
; In the interface tab, add sliders for:
; number-of-computers: min=0; increment=1; max=100; value=100
; links-to-other-computers: min=0; increment=1; max=10; value=5
; likely-to-share: min=0; increment=1; max=50; value=10; unit=%

; It would be useful to know the number of times the image has been viewed and the number of times
; the image has been shared in our simulation.
; In the interface tab, add monitors for:
; numshares and numviews
; In the interface tab, add a plot:
; Name=Image sharing; x axis label=Time; y axis label=Number
; Makes ure Auto scale? and Show legend? are checked
; Plot pens: pen name: Num. Shares --> plot numshares
; Plot pens: pen name: Num. Views --> plot numviews

globals [
  computerColors
  ; Create a variable called numshares to count the number of times the image has been shared
  numshares
  ; Create a variable called numviews to count the number of times the image has been viewed
  numviews
]

turtles-own[
  ; Create a variable called seenimage; it will be true if the computer has seen the image
  seenimage
  ; Create a variable called sharedimage; it will be true of the computer has shared the image
  sharedimage
]

; The setup procedure

to setup
  ; Clear the world
  clear-all
  ; Initialize numshares and numviews to 0
  set numshares 0
  set numviews 0
  ; Color the background white, and
  ask patches [set pcolor white]
  ; Initialize an array of colors for the computers
  set computerColors [ 15 25 45 65 75 85 95 115 125 135 ]
  ; Color the links between the computers gray
  ask links [ set color 5 ]
  ; Call the setupNetwork and setup-spatially-clustered-network procedures
  setupNetwork
  setup-spatially-clustered-network
  ; Set the sharedimage and seenimage variables to false for all of the turtles (computers)
  ask turtles [ set sharedimage false set seenimage false ]
  ; One computer must start with the image
  ; Set seenimage to true, sharedimage to false, color to black, and size to 2
  ask one-of turtles [ set seenimage true set sharedimage false set color black set size 2 ]
  ; reset the clock for the model
  reset-ticks
end

; The go procedure

to go
  ; Our program should stop when all of the computers have seen the image (when seenimage = true)
  if all? turtles [seenimage = true]
    [ stop ]
  ; To start our model, we must ask the computers to start spreading the image
  ask turtles [
    spreadimage
  ]
  ; Go to the next cycle (tick)
  tick
end

; The setupNetwork procedure

to setupNetwork
  ; set the default shape of the turtles ("house")
  set-default-shape turtles "house"
  ; place the desired number of computers into the model
  crt number-of-computers
  [
    ; set the color of the computers to one of the colors in the array of computerColors
    set color one-of computerColors
    ; Place the computers randomly throughout the model, but not too close to the edge
    setxy (random-xcor * 0.95) (random-ycor * 0.95)
  ]
end

; The setup-spatially-clustered-network procedure

to setup-spatially-clustered-network
  let num-links (links-to-other-computers * number-of-computers) / 2
  while [count links < num-links ]
  [
    ask one-of turtles
    [
      let choice (min-one-of (other turtles with [not link-neighbor? myself])
                   [distance myself])
      if choice != nobody [ create-link-with choice ]
    ]
  ]
  ; make the network look a little prettier
  repeat 10
  [
    layout-spring turtles links 0.3 (world-width / (sqrt number-of-computers)) 1
  ]
end

; The spreadimage procedure

to spreadimage
  ; A computer can spread the image if they have seen it and not shared the image before
  if seenimage = true and sharedimage = false [
    ; A computer can spread the image only a percentage of the time
    if random 100 < likely-to-share [
      ; if this is that percentage of the time, share the image!
      ; when you share the image, call viewimage because it means that all of your neighbors will see it
      ask link-neighbors [
        viewimage
      ]
      ; You've shared the image, so set sharedimage to true
      set sharedimage true
      ; Also, increase the number of shares variable by 1
      set numshares numshares + 1
    ]
  ]
end

; The viewimage procedure

to viewimage
  ; when a computer has seen the image, change their color to black and size to 2
  set color black
  set size 2
  ; the neighbors have seen the image, so ask them to set their seenimage variable to true
  ; This will give them a change to share the image during the next pass
  ask link-neighbors [set seenimage true]
  ; the neighbors have seen the image, so increase the number of the number of views variable by 1
  set numviews numviews + 1
end
