Guppy Spots

globals
[
  ;; used to keep score
  mate-leader
  mates-found
  predator-leader
  prey-found
  total-mates-found
  total-prey-found

  ;; used for different aspects of the appearance
  wander-angle
  old-show-age?

  ;; used to mutate the colors of the fish
  min-size
  max-size
  chance-mutate-color
  chance-mutate-size
  max-fish-size
  max-size-mutation-step
  max-color-mutation-step
]

breed [ fish a-fish ]
breed [ fish-parts fish-part ]
breed [ rocks rock ]
breed [ players player ]

players-own [user-name found attempts role]

;; gene-frequencies are used to determine the color of the fish
;; (or fish parts). When fish reproduce the gene-frequencies
;; will mutate making a slightly different color
fish-own [
    red-pigment-gene-frequency
    blue-pigment-gene-frequency
    green-pigment-gene-frequency
    age      ;; fish cannot reproduce until they have reached MIN-AGE-REPRODUCTION
    reproduce?
    eaten?
    my-parts ;; agentset including tail and fins for easy access
  ]

fish-parts-own [
  owned-by    ;; parent fish
  body-part   ;; which part of the body this turtle displays (tail, top or bottom fins)
  red-pigment-gene-frequency
  blue-pigment-gene-frequency
  green-pigment-gene-frequency
]


;;;;;;;;;;;;;;;;;;;
;; Setup Procedures
;;;;;;;;;;;;;;;;;;;

to startup
  hubnet-reset
  init-globals
  setup-environment
  make-initial-fish
end

;; set constants once at the very beginning.

to init-globals
  set wander-angle 40
  set chance-mutate-color 20
  set chance-mutate-size 20
  set max-fish-size 3
  set min-size 1
  set max-size 5
  set max-size-mutation-step 1
  set max-color-mutation-step 50
end

;; reset the fish, predators, and mates
;; to their initial conditions to start
;; the simulation over

to setup
  reset-ticks
  ask fish [ die ]
  ask fish-parts [ die ]
  ask rocks  [ die ]
  clear-all-plots
  init-globals
  setup-environment
  make-initial-fish
  ask players
  [
    init-player-variables
    update-player
  ]
end

to setup-environment
  ask patches [ set pcolor background-color ]
  if (rock-shelters?)
  [
    create-rocks 1 [
      set size world-width
      set color (brown - 3)
      set shape "rocks"
    ]
  ]

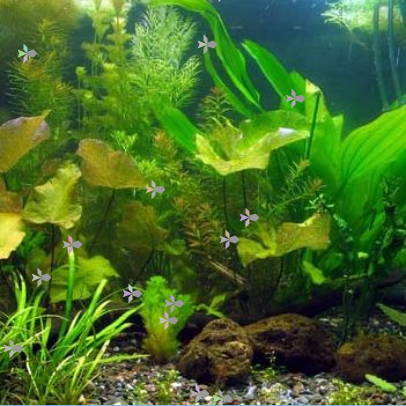

 import-drawing background
end

;; each fish consists of several turtles, one for the body
;; one for the tail, and one for each of the fins
;; so the colors can vary separately

to make-initial-fish
  create-fish carrying-capacity [
    set shape "fish-body"
    assign-initial-body-genotype-and-phenotype
    setxy random-xcor random-ycor
    set size (max-fish-size / 2)
    assign-initial-fish-parts
    set age 0
    set eaten? false
    set reproduce? false
    if show-age?
    [
      set label-color red
      set label (word age "      ")
    ]
  ]
end

to assign-initial-body-genotype-and-phenotype
   set red-pigment-gene-frequency 150
   set blue-pigment-gene-frequency 150
   set green-pigment-gene-frequency 150
   set-phenotype-color
end

;; make the fish parts and
;; use the my-part turtle variable to
;; have a quick reference to the turtles
;; that make up the tail and fins.

to assign-initial-fish-parts
  hatch-fish-part "top"
  hatch-fish-part "bottom"
  hatch-fish-part "tail"
  set my-parts fish-parts with [ owned-by = myself ]
end

to hatch-fish-part [name]
  hatch-fish-parts 1 [
    set body-part name
    set owned-by myself
    set shape word "fish-" name
    assign-initial-part-genotype-and-phenotype
  ]
end

to assign-initial-part-genotype-and-phenotype
  set red-pigment-gene-frequency (red-pigment-gene-frequency  + random-float 20)
  set green-pigment-gene-frequency (green-pigment-gene-frequency  + random-float 20)
  set blue-pigment-gene-frequency (blue-pigment-gene-frequency  + random-float 20)
  set-phenotype-color
end

;; convert the genetic representation of gene frequency
;; into a phenotype using the rgb primitive

to set-phenotype-color  ;; turtle procedure
  set color rgb red-pigment-gene-frequency
                green-pigment-gene-frequency
                blue-pigment-gene-frequency
end

to toggle-labels
  ;; only change the labels when the switch is
  ;; changed so they don't flicker and slow the
  ;; model down.
  if old-show-age? != show-age?
  [
    ask fish [
      ifelse show-age?
      [
        set label-color red
        set label (word age "      ") ;; add spaces at the end to the label is shifted to the left a bit
      ]
      [
        set label ""
      ]
    ]
    set old-show-age? show-age?
  ]
end

;; the rock shelter is used to hide newborn
;; fish so they don't clump up too much.

to make-rock-shelter
  ;; keep the existence of the rock shelters in
  ;; sync with the switch.
  if rock-shelters? and count rocks = 0
  [
    if (rock-shelters?)
     [
       create-rocks 1 [
         set size world-width
         set color ( brown - 3)
         set shape "rocks"
       ]
     ]
  ]
  if not rock-shelters? and count rocks > 0
  [ ask rocks [ die ] ]
end

;;;;;;;;;;;;;;;;;;;;;
;; Runtime Procedures
;;;;;;;;;;;;;;;;;;;;;

to go
  ask fish [ set age age + 1 ]
  ask fish [ move-fish ]
  ask fish [ update-fish ]

  ;; keep the world in a state consistent
  ;; with the model settings
  toggle-labels
  make-rock-shelter
  enforce-capacity

  every 0.01 [ listen-clients ]
  tick
  update-plots
end

to move-fish ;; fish procedure
  let move-right random wander-angle
  let move-left  random wander-angle
  let move-forward 0

  ;; fish-speed-scale slows down or speeds up fish
  ;; to make the game more playable without slowing
  ;; down the entire model.
  ifelse (count fish <= 50)
  [ set move-forward fish-speed-scale * 0.001 * (count fish) ]
  [ set move-forward fish-speed-scale * 0.001 * 50 ]

  ;; move myself and my fins and tail.
  ask my-parts
  [
    right move-right
    left move-left
    fd move-forward
  ]
  right move-right
  left move-left
  fd move-forward
end

to update-fish ;; fish procedure
  ;; remove fish that are tagged to die
  ;; and all associated parts
  if eaten?
  [
    ask my-parts [ die ]
    die
  ]

 ;; reproduce fish that are tagged to reproduce
 if reproduce?
 [
    make-one-offspring
    set age 0
    set reproduce? false
 ]
end

to enforce-capacity
 ;; keeps the world population
 ;; constant so there is no population
 ;; boom or bust.
 if enforce-capacity? [
   if count fish > 0
   [
     while [ count fish < carrying-capacity ]
       [ reproduce-fish ]
     while [ count fish with [ eaten? = false ]  > carrying-capacity ]
       [ eat-one-random-fish ]
   ]
 ]
end

to eat-one-random-fish
  ask one-of fish [ set eaten? true ]
end

to reproduce-fish
  ask one-of fish [
    make-one-offspring
    set age 0
  ]
end

to make-one-offspring ;; fish procedure
  set age 0
  hatch 1
  [
    set reproduce? false
    make-offspring-parts myself
  ]
end

to make-offspring-parts [parent] ;; fish procedure
  let baby-xcor random-pxcor
  let baby-ycor (1 + min-pycor)

  if rock-shelters? [
    setxy baby-xcor baby-ycor
    set heading 0
  ]

  ;; keep track of the fish that is hatching the parts
  ;; because we get double perspective change below and
  ;; we can't get back to the parent fish.
  let owner self

  ask [my-parts] of parent  [
    hatch 1 [
     set owned-by owner
     set red-pigment-gene-frequency color-mutation red-pigment-gene-frequency
     set green-pigment-gene-frequency color-mutation green-pigment-gene-frequency
     set blue-pigment-gene-frequency color-mutation blue-pigment-gene-frequency
     set-phenotype-color
     size-mutation
     if rock-shelters?
     [
       setxy baby-xcor baby-ycor
       set heading 0
     ]
    ]
   ]

   set my-parts fish-parts with [ owned-by = myself ]
end

;; everytime a predator or mate catches a fish update
;; his found variable and the totals for that role

to update-found-stats
  ask players with [ user-name = hubnet-message-source ]
  [
    set found found + 1
    if role = "predator"
    [ set total-prey-found total-prey-found + 1 ]
    if role = "mate"
    [ set total-mates-found total-mates-found + 1 ]
  ]
end

;; update the stats for the leaders in the game

to update-mate-leaders
  let mates players with [ role = "mate" ]
  let leaders mates with-max [ found ]

  ifelse count leaders > 1
  [ set mate-leader (word count leaders "-way tie") ]
  [ set mate-leader [user-name] of one-of leaders ]
  set mates-found [found] of one-of leaders
end

to update-predator-leaders
  let predators players with [ role = "predator" ]
  let leaders predators with-max [ found ]

  ifelse count leaders > 1
  [ set predator-leader (word count leaders "-way tie") ]
  [ set predator-leader [user-name] of one-of leaders ]
  set prey-found [found] of one-of leaders
end

;; extract the coordinates of the mouse event
;; on client, find any fish on that location
;; and mark them for reproduction or eating

to select-fish
  let owner nobody
  let clicked-xcor  (round item 0 hubnet-message)
  let clicked-ycor  (round item 1 hubnet-message)
  let this-players-role ""

  let fishies-here fish-on patch clicked-xcor clicked-ycor

  ask players with [user-name = hubnet-message-source]
  [
    set attempts attempts + 1
    if any? fishies-here [
      update-found-stats
      ;; predators or mates only get one of the fish here
      ;; each time they click.
      ask one-of fishies-here [
        ifelse [role] of myself = "mate"
        [ if age > min-age-reproduction
          [ set reproduce? true ] ]
        [ set eaten? true ]
      ]
      update-leader-stats

      ;; every time any player finds a fish update the
      ;; monitors on all the players with the same
      ;; role, so the leader stats don't get out of date
      ;; if they don't click for awhile
      ask players with [ role = [role] of myself ]
        [ update-player ]
    ]
  ]
end

;; mutate the size, don't let the size go outside
;; the range min-size - max-size

to size-mutation
  if random 100 < chance-mutate-size
  [
    set size size + random-float max-size-mutation-step
    if size < min-size
      [ set size min-size ]
    if size > max-size
      [ set size max-size ]
  ]
end

;; mutate the color but don't let it mutate
;; outside the random 1 - 10

to-report color-mutation [gene-frequency]
  let mutation (random (max-color-mutation-step * 2)) - max-color-mutation-step
  if random 100 < chance-mutate-color [
    set gene-frequency gene-frequency + mutation
  ]
  if gene-frequency < 0
    [ set gene-frequency 0 ]
  if gene-frequency > 255
    [ set gene-frequency 255 ]
   report gene-frequency
end

to update-leader-stats
  if any? players with [role = "mate"]
  [ update-mate-leaders ]
  if any? players with [role = "predator"]
  [ update-predator-leaders ]
end

;;
;; HubNet Procedures
;;

to listen-clients
  while [hubnet-message-waiting?]
  [
    hubnet-fetch-message
    ifelse hubnet-enter-message?
    [ add-player ]
    [
      ifelse hubnet-exit-message?
      [ remove-player ]
      [
        if hubnet-message-tag = "View"
        [ select-fish ]
      ]
    ]
  ]
end

;; report name of the leader of a players group

to-report my-leader ;; player procedure
  ifelse role = "mate"
  [ report mate-leader ]
  [ report predator-leader ]
end

to-report my-leaders-score ;; player procedure
  report max [ found ] of players with [ role = [role] of myself ]
end

;; update all the monitors that change on the clients

to update-player ;; player procedure
  hubnet-send user-name "Your role" role
  let max-found my-leaders-score
  hubnet-send user-name "Your leader" my-leader
  hubnet-send user-name "Leader found" max-found
  hubnet-send user-name "You found" found
  ifelse max-found = 0
  [ hubnet-send user-name "Success %"  100  ]
  [ hubnet-send user-name "Success %"  precision ((found / max-found) * 100)  2 ]
end

to add-player
  create-players 1
  [
    set user-name hubnet-message-source
    init-player-variables
    hubnet-send user-name "Your name" user-name
    update-player
  ]
end

;; initialize one player

to init-player-variables ;; player procedure
  set attempts 0
  set found 0
  if player-roles = "all predators"
  [ set role "predator" ]
  if player-roles = "all mates"
  [ set role "mate" ]
  if player-roles = "predators v. mates" [
    ifelse random 2 = 0
    [ set role "predator" ]
    [ set role "mate" ]
  ]
  set hidden? true
end

to remove-player
  ask players with [user-name = hubnet-message-source ]
    [ die ]
end


; Copyright 2006 Uri Wilensky.
; See Info tab for full copyright and license.
