GIS Gradient Example

extensions [ gis ]

globals [ elevation slope aspect ]

to setup
  clear-all
  set elevation gis:load-dataset "data/local-elevation.asc"
  gis:set-world-envelope gis:envelope-of elevation
  let horizontal-gradient gis:convolve elevation 3 3 [ 1 1 1 0 0 0 -1 -1 -1 ] 1 1
  let vertical-gradient gis:convolve elevation 3 3 [ 1 0 -1 1 0 -1 1 0 -1 ] 1 1
  set slope gis:create-raster gis:width-of elevation gis:height-of elevation gis:envelope-of elevation
  set aspect gis:create-raster gis:width-of elevation gis:height-of elevation gis:envelope-of elevation
  let x 0
  repeat (gis:width-of slope)
  [ let y 0
    repeat (gis:height-of slope)
    [ let gx gis:raster-value horizontal-gradient x y
      let gy gis:raster-value vertical-gradient x y
      if ((gx <= 0) or (gx >= 0)) and ((gy <= 0) or (gy >= 0))
      [ let s sqrt ((gx * gx) + (gy * gy))
        gis:set-raster-value slope x y s
        ifelse (gx != 0) or (gy != 0)
        [ gis:set-raster-value aspect x y atan gy gx ]
        [ gis:set-raster-value aspect x y 0 ] ]
      set y y + 1 ]
    set x x + 1 ]
  gis:set-sampling-method aspect "bilinear"
  ask patches
  [ sprout 1
    [ set color blue
      let h gis:raster-sample aspect self
      ifelse h >= -360
      [ set heading subtract-headings h 180 ]
      [ die ] ] ]

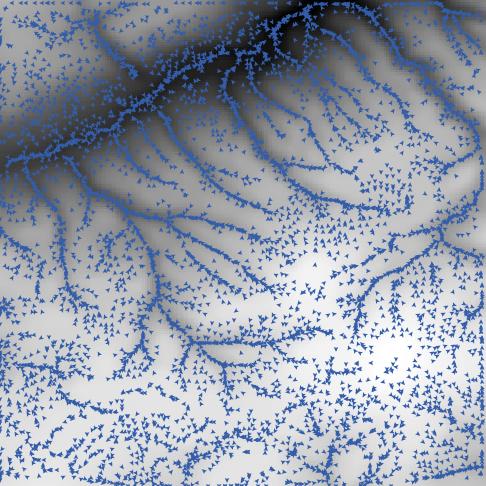

  gis:paint elevation 0
  reset-ticks
end

to go
  ask turtles
  [ forward random-normal 0.1 0.1
    let h gis:raster-sample aspect self
    ifelse h >= -360
    [ set heading subtract-headings h 180 ]
    [ die ] ]
  tick
  if not any? turtles
  [ stop ]
end


; Public Domain:
; To the extent possible under law, Uri Wilensky has waived all
; copyright and related or neighboring rights to this model.
