Opinion Dynamics: Friedkin-Johnsen Model - Basic

1 collaborator

Mutian Zhao (Author)

WHAT IS IT?

(a general understanding of what the model is trying to show or explain)

HOW IT WORKS

(what rules the agents use to create the overall behavior of the model)

HOW TO USE IT

(how to use the model, including a description of each of the items in the Interface tab)

THINGS TO NOTICE

(suggested things for the user to notice while running the model)

THINGS TO TRY

(suggested things for the user to try to do (move sliders, switches, etc.) with the model)

EXTENDING THE MODEL

(suggested things to add or change in the Code tab to make the model more complicated, detailed, accurate, etc.)

NETLOGO FEATURES

(interesting or unusual features of NetLogo that the model uses, particularly in the Code tab; or where workarounds were needed for missing features)

RELATED MODELS

(models in the NetLogo Models Library and elsewhere which are of related interest)

CREDITS AND REFERENCES

(a reference to the model's URL on the web if it has one, as well as any other necessary credits, citations, and links)

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

globals [
  num-agents          ;; Number of agents
  neighbor-radius     ;; Radius for neighbor detection
  step-counter        ;; Time step counter
]

turtles-own [
  opinion             ;; Agent's opinion (0-1)
  self-weight         ;; Weight given to self-opinion
  neighbor-weights    ;; List associating neighbors with their weights
]

to setup
  clear-all
  reset-ticks

  ;; Parameter initialization
  set num-agents 200
  set neighbor-radius 5
  set step-counter 0

  ;; Create agents (uniform distribution)
  create-turtles num-agents [
    set shape "circle"
    set size 1.5

    ;; Random position and opinion
    setxy random-xcor random-ycor
    set opinion random-float 1  ;; Uniformly distributed initial opinions
    update-weights  ;; Initialize weights
    update-color    ;; Set color based on opinion
  ]
end

to update-weights
  ;; Clear and recalculate all weights
  set self-weight 0.2  ;; Fixed self-weight at 0.2
  set neighbor-weights []  ;; Empty neighbor weights list

  ;; Get neighbor agents (excluding self)
  let my-neighbors other turtles in-radius neighbor-radius
  let neighbor-total-weight 0
  let neighbor-list sort my-neighbors

  ;; Calculate neighbor weights (excluding self)
  foreach neighbor-list [ n ->
    let dist distance n
    let w exp (-5 * dist)  ;; Weight calculated using exponential decay
    set neighbor-weights lput (list n w) neighbor-weights
    set neighbor-total-weight neighbor-total-weight + w
  ]

  ;; Normalize neighbor weights (sum of neighbor weights = 1)
  let normalized-neighbor-weights []
  foreach neighbor-weights [ pair ->
    let neighbor item 0 pair
    let weight item 1 pair
    set normalized-neighbor-weights lput (list neighbor (weight / neighbor-total-weight)) normalized-neighbor-weights
  ]

  set neighbor-weights normalized-neighbor-weights
end

to update-color
  ;; More positive opinions (near 1) are lighter blue
  ;; More negative opinions (near 0) are darker blue
  set color scale-color blue opinion 0 1
end

to go
  if not any? turtles [ stop ]

  ;; Update weights and calculate new opinions
  ask turtles [
    update-weights
    let new-op 0

    ;; Contribution from self-opinion
    set new-op new-op + self-weight * opinion

    ;; Weighted contributions from all neighbors
    let neighbor-influence 0
    foreach neighbor-weights [ pair ->
      let neighbor item 0 pair
      let weight item 1 pair
      set neighbor-influence neighbor-influence + weight * [opinion] of neighbor
    ]
    set new-op new-op + (1 - self-weight) * neighbor-influence

    set opinion new-op
    update-color  ;; Update color mapping
  ]

  set step-counter step-counter + 1
  tick
end

There are 2 versions of this model.

		Uploaded by	When	Description	Download
		Mutian Zhao	about 1 month ago	translate	Download this version
		Mutian Zhao	about 1 month ago	Initial upload	Download this version

Attached files

File	Type	Description	Last updated

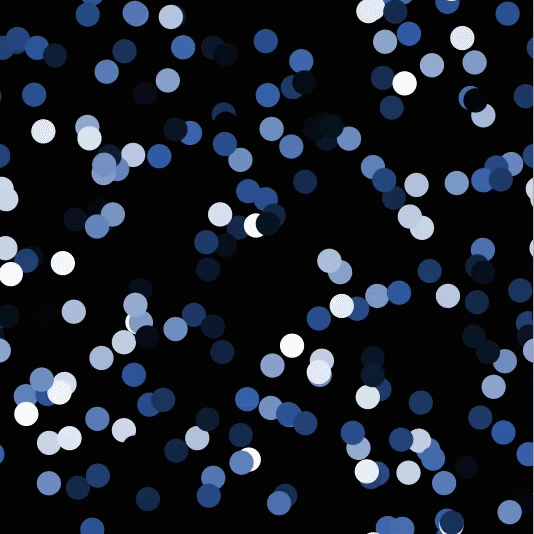

GIF1.gif	gif	With agents having fixed social interaction ranges, group opinions fragment into several camps, giving rise to localized opinion assimilation.	about 1 month ago, by Mutian Zhao	Download

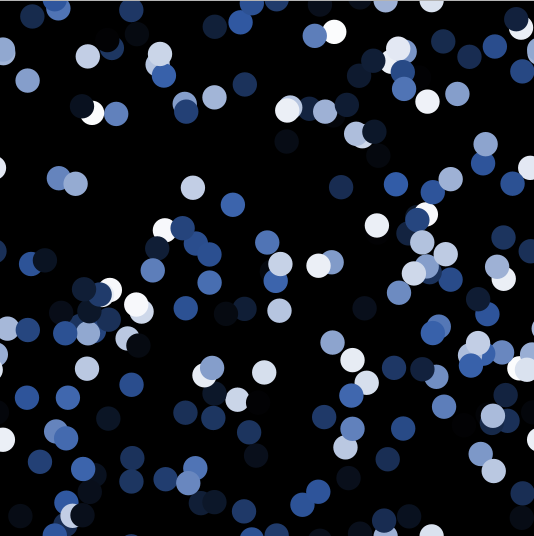

Opinion Dynamics: Friedkin-Johnsen Model - Basic.png	preview	Initially, attitudes are uniformly distributed. The lighter a turtle's color, the more positive its opinion; conversely, the darker the color, the more negative its opinion.	about 1 month ago, by Mutian Zhao	Download
