; NETLOGO DEMO-3

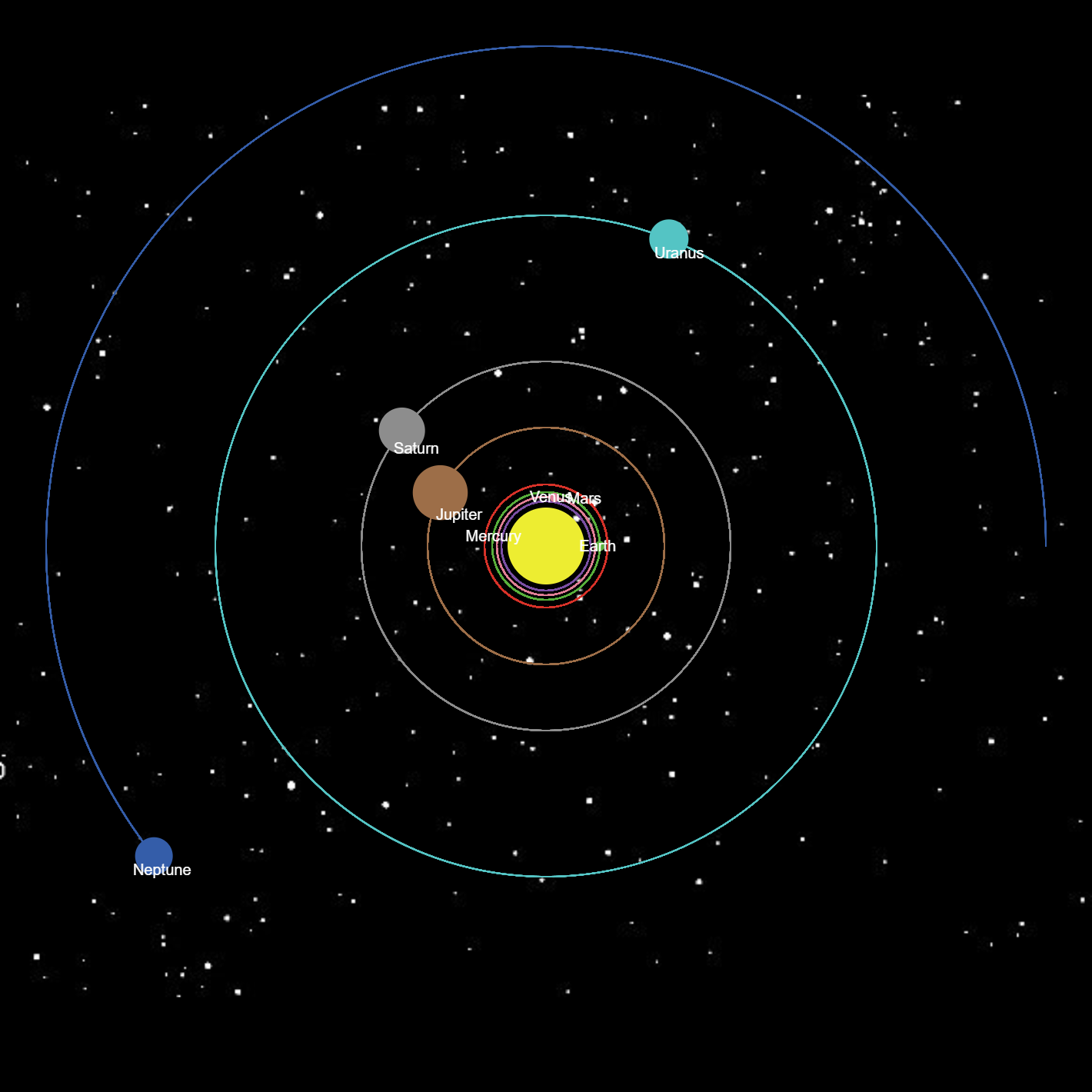

; Computermodel of the Solar System
; Optimized programming code & adjusted scale (optional) !
; © Drs. Ioannis Guertsonii, 2024
; -------------------------------------------------------------------------


globals [  ; GLOBAL VARIABLES
  sun ; sun object
  ss  ; size sun (diameter)
  xc  ; x-coordinate center solar system
  yc  ; y-coordinate center solar system
  xb  ; x-coordinate planet
  yb  ; y-coordinate planet
]

turtles-own [  ; TURTLE ATTRIBUTES
  name  ; name planet
  dfs   ; distance from sun
  ot    ; orbit time
  a     ; angle
  a1    ; angle in 1 day
]

to setup  ; SETUP BUTTON
  clear-all
  if (backImage?) [  ; get background image of the universe (optional)
   import-drawing "stars.jpg"
  ]
  setup-sun  ; call sun procedure
  setup-planets  ; call planets procedure
  reset-ticks
end

to setup-sun  ; SUN PROCEDURE
  create-turtles 1 [
    set shape "circle"
    set color yellow
    set ss (5)  ; not to scale !
     set size ss
    setxy 0 0
    set sun self
  ]
end

to setup-planets  ; PLANETS PROCEDURE
 ifelse not(trueScale?)
 [  ; NO True Scale
  let planet-data [  ; name, distance from sun (relative), orbit-time (days), color, size (relative)
    ["Mercury" 4 880 violet 1]
    ["Venus" 8 225 pink 3]
    ["Earth" 12 365 green 4]
    ["Mars" 16 687 red 2]
    ["Jupiter" 20 4332 brown 8]
    ["Saturn" 24 10759 grey 7]
    ["Uranus" 28 30688 cyan 6]
    ["Neptune" 32 60182 blue 5]
   ]
   foreach planet-data [ ?1 ->
     create-turtles 1 [
      set name item 0 ?1
      set dfs item 1 ?1
      set ot item 2 ?1
      set color item 3 ?1
      set size (item 4 ?1) / 2
      set shape "circle"
      setxy (ss / 2 + dfs) 0
      set label name
    ]
   ]
  ]
  [  ; TRUE Scale
   let planet-data [  ; name, distance from sun (AU), orbit-time (days), color, size (diameter)
    ["Mercury" 0.4 880 violet 0.5]
    ["Venus" 0.7 225 pink 1.2]
    ["Earth" 1 365 green 1.3]
    ["Mars" 1.5 687 red 0.7]
    ["Jupiter" 5.2 4332 brown 7.15]  ; actual size = 14.3
    ["Saturn" 9.5 10759 grey 6.0]  ; actual size = 12.0
    ["Uranus" 19 30688 cyan 5.1]
    ["Neptune" 30 60182 blue 4.9]
   ]
   foreach planet-data [ ?1 ->
    create-turtles 1 [
     set name item 0 ?1
     set dfs item 1 ?1  ; Astronomical Unit (AU): 1 AU = 149.6 * 1000000 km
     set ot item 2 ?1
     set color item 3 ?1
     set size (item 4 ?1) / 2  ; Actual diameter = size * 10000 km
     set shape "circle"
     setxy (ss / 2 + dfs) 0
     set label name
   ]
  ]
 ]
end

to go  ; GO BUTTON -> Procedure will be repeated until Button is pushed again

  tick   ; next day

  ask turtles with [self != sun] [
    if ticks > 0 [ pen-down ]
    set a1 (360 / ot)
     set a (a + a1)
    set xb (xc + (ss / 2 + dfs) * cos(a))  ; calculate new position planet
     set yb (yc + (ss / 2 + dfs) * sin(a))
    setxy xb yb  ; move to new position
  ]

  if (ticks = nrYears? * 365) [ stop ]   ; standard stop after entered number of years
end
