Customer Stores Choice Model

1 collaborator

Sachin Yadav (Author)

Overview

Purpose and Patterns

The model is designed to explore questions about how customers choose which stores to visit given a setting of the location of the stores and customers in a grid. A customer is assumed to favor the store which is near to home location and the waiting time at the store should also be low. Using this, we assume that the "unhappiness" of a customer depends on a linear combination of the travelling time from home to the store and average waiting time at the store over the past visits. At first the customer prefer the store nearest, but as the waiting time grows due to crowd, he/she looks for alternatives and then makes the best decision based on it. We can think of the store selection as a form of "Minority Game", but the with a location factor involved for the agents.

In patterns, we hope to see the trend of the average "unhappiness" of the population over the time, as the customers regurarly make decisions to choose the best store based on the past experiences and distance to store's location. The distribution of the customers at each store and "unhappiness" distribution of the population is also to be observed to draw conclusions about how biased the distribution is on the location of stores. Finally, we observer the pattern of unhappiness over the grid terrain, to conclude the effect of proximity of competing stores to uneven unhappiness distribution around the stores location.

Entities, State variables and scales

The model has mainly the two entities Stores and Customers; the other minor being House entities.

Customers

ID and location of the home on grid (Each customer is associated with a unique home on the grid))
Store visit count list (A list which maintains that how many times the customer have visited each store in the past)
Store total waiting time list (A list which maintains that how much total time customer have spent waiting at each store)
Rest time (A random value in range(1, MaxRestTime) to decide for how much time, a customer should rest at home before next visit)
Wait time (Based on the current crowd and quantity, the time for which the customer must wait at store to get the request fulfilled)
Demand (A random value in range(1, MaxDemanTime) to decide what is the required quantity by the customer while visit to a store)
Target store ID (On starting a visit to store, the customer decides the best available store)
A state variable or set of state variable to store the current state of person whose value can be one of ["at home", "travelling to store", "at store", "travelling to home"]

Stores
Quantity (The current quantity available at the store, can be negative if the crowd at the store is already waiting at the store for a placed order)

Houses

Marks the home location of the unique customer associated with it.

Scales and Limits

The landscape is 21 X 21 patches in size with no wrapping at its edges.
There is no time limit to the simulation. The user has to manually stop the go forever button.

Global Variables
Supply rate (same for each store)
Max quantity of store (same for each store)
Max Demand of customers for a visit
Max Rest time of customers after a visit

How to Use (Model Interface)

Model Parameters

Agent Population

num-consumers: The number of customers in the grid
num-stores: The number of stores in the grid

Store Parameters

store-capacity: The maximum quantity any store can hold
supply-rate: The rate at which the quantity is replenished

Customer Parameters

person-max-demand (The maximum required quantity by the customer on a visit)
person-max-rest-time (The maximum time a customer rests at home before next visit)

Procedure Buttons

Setup: Setup and initialise the whole with the new location of stores and customers
setup-consumers: Vary the location of customers keeping the location of stores same and reset the time and all entities variables
setup-stores: Vary the location of stores keeping the location of customers same and reset the customer variables
go-once: Run the model for a single time step
go: Run the model forever
reset-consumers: Reset the customer variables with the time and plots. The location of stores and customers do not change

Visual Tools

inner-influence-circles? : Whether to display the inner influence circles for each store
outer-influence-circles? : Whether to diplay the outer influence circles for each store
show-links? : Whether to display the links between stores and its current customer home locations
show-unhappiness-terrain? : Whether to color the patches as per the unhappiness distribution over the grid

Plots

num-customers(Histogram): It shows the current number of customers for each store at the current time
num-customers-waiting(Histogram): It shows the number of customers at each store which are currently waiting at the store for their demand to be fulfilled
average-unhappiness(Line plot): Shows the average unhappiness of the customers value over the time
unhappiness-distribution(Histogram): Show the distribution of the unhappiness over the customers population

Monitors

average-unhappiness: Shows the current average unhappiness of the customer population
unhappiness-start-time: The first time when each customer has visited its target store at least once
std-dev unhappiness: The standard deviation of the unhappiness values of the customer population
mean inner-influence-radius: The mean of the inner influence radius of the stores
std-dev inner-influence-radius: Standard deviation of the inner influence radius of the stores
mean outer-influence-radius: The mean of the outer influence radius of the stores
std-dev outer-influence-radius: Standard deviation of the outer influence radius of the stores

Store Location Optimization

move-shops-towards-customers: Moves the stores to the mean coordinate of their current customers home location and reset the customers and plots
move-shops-towards-unhappiness-customers: Moves the stores the unhappiness weighted mean of their current customers home location and reset the customers and plots

Process Overview and Scheduling

Processes

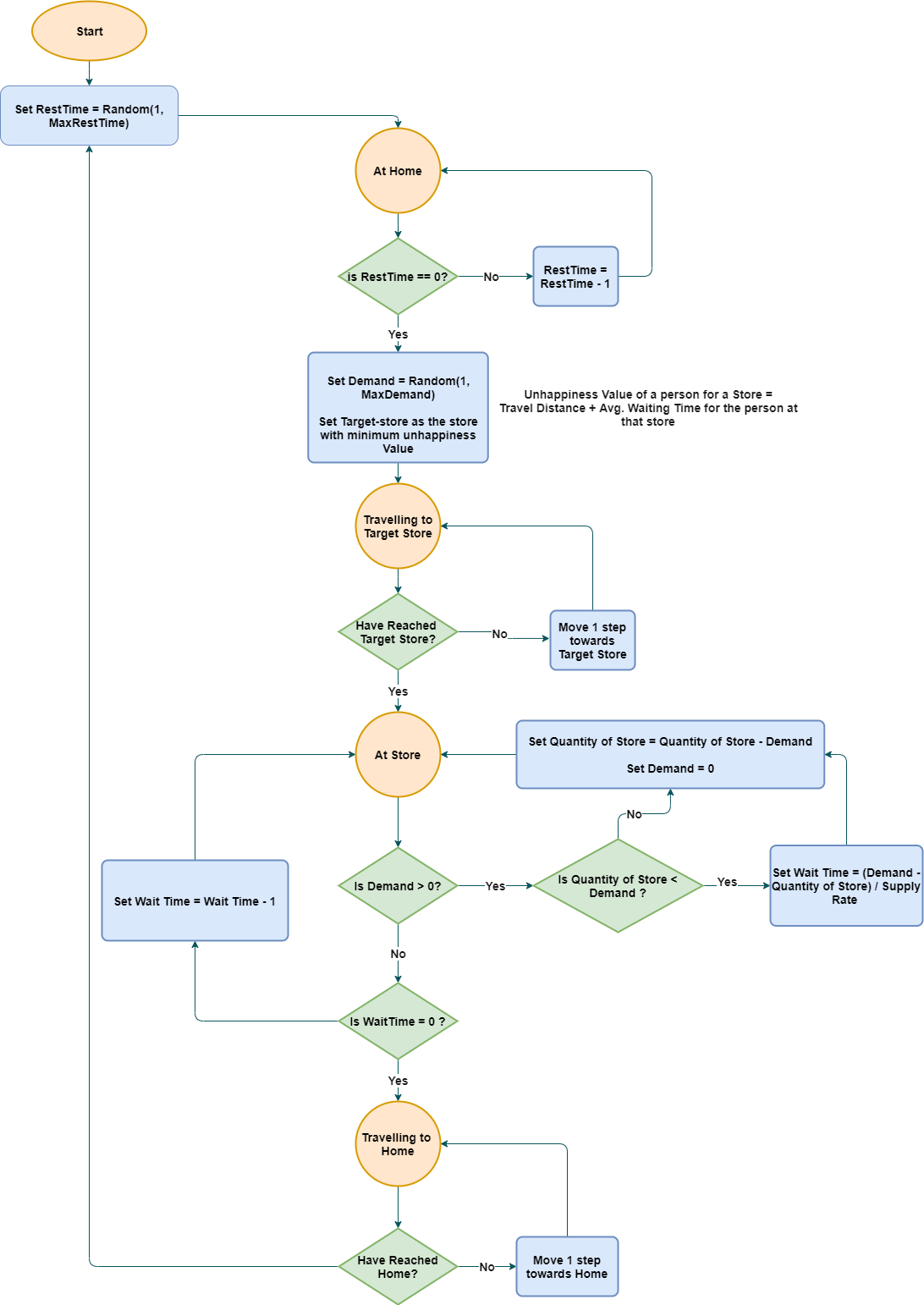

Logic for Customer

In a single discrete time unit, the execution in the flow chart of customer reaches a "flowchart state" (can be same as previous) from the previous "flowchart state". The figure below explains the cycle of actions for the customer.

The customer performs actions as per the current state in the flowchart. Accordingly, it moves or sets some state variables such as restTime, waitTime or completes an order transaction at a store in a single time unit.
A customer is initially at the home location with a random RestTime between 1 and Max Rest time.
With every tick, the rest time of the customer decreases by 1, if the customer is at home.
When the rest time becomes zero, the customer makes a decision to which store to visit based on the store with least unhappiness value. (Unhappiness of a customer with respect to a store = Travelling distance from store + Average waiting time at the store)
The state of the customer changes from "at home" to "travelling to store" and starts moving towards target-store.
On reaching the target store, the state of customer is changed to "at store". On visit, the customer updates the quantity at store, the demand value. In case the quantity at the store is less the customer's demand, then the customer has to wait for the given time. WaitTime = (Customer's demand - Quantity at Store) / Supply Rate
Once the waiting time is over, the customer starts to move towards home location.
Once reaching the home, the restTime is set in Random(1 , max-restTime).
When the restTime becomes zero, the customer repeats the above steps starting from making a decision to which store to visit based on unhappiness value for each store for the given customer.

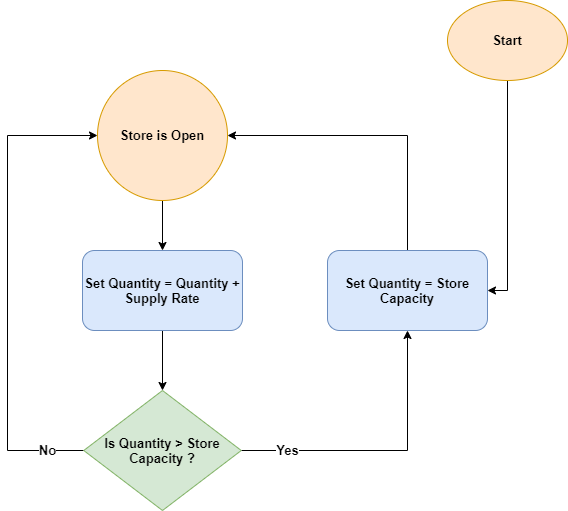

Logic for Store

At each time unit, the quantity of each store increases by the supply rate.
If the quantity is more than the capacity of the store, quantity is set to the capacity.

Schedules

The order in which the customers and stores respectively perform actions is unimportant because there are no direct interactions.
In our model implementation, first the customer agentset perform the action described in Customer Flowchart. The order of customers execution is random.
After the customers have performed their respective actions, the stores update the quantity as per the supply rate. The order of stores execution is random and is unimportant.
In each time unit, customers and stores execute one step in the flowchart moving to a new state (which may be the same as previous state).
The visual outputs use synchronous updating such as the influence circles are updated at the end of the time step.
There is no time limit for a run, so the user has to manually stop the go procedure if required.

Design Concepts

Basic Principles

How Customers decide the Stores
There are multiple factors by which a customer decide which store to visit such as travelling distance to the store, waiting time at the store, price, customer service, personal preferences and many more. Here in our models we have taken into consideration the first two factors that are the travelling distance to the store and waiting time at the store.

'Unhappiness' value for a store of a customer Here we define the unhappiness value, as the unsatisfaction of the customer for the specific store. We take it as a linear combination of the travelling distance and average waiting time at the store. The customer keeps track of the average waiting at the store of his/her past visits to it. So we define unhappiness value of a store for a customer as: unhappiness value = Travelling Distance + Average Waiting Time for the customer in past visits In case the customer has not visited a store once, the average waiting time for that store is taken to be 0. THe unhappiness value of the customer for calculating the average unhappiness and unhappiness distribution is taken to be the unappiness associated with its current target-store.

Deciding target store for a customer The store that the customer will be visiting, will be the store which gives the minimum unhappiness value for the customer.

Emergence

The key outcome of the model are the distribution of customers over the stores and the avaerage unhappiness value over the time period. Over the simulation, the customers would try to avoid the crowded stores with a preference of the location. The choices of the customers made over the time is based on the prediction from past experiences. The run of the model can be generally classified into three time phases - the initial phase, decision phase and the stable phase. In the initial phase, the customers are expected to prefer just the nearby store. But as certain store gets crowded, the customers of the specific store look for better alternatives stores. In the decision phase, the customer distribution keeps on changing as per the decision and crowd at the store and the average unhappiness values goes over a period of ups and downs. Finally after a long run, in stable phase, the average unhappiness value is expected to stabilise as the customers have made choice preferences based on the past visits to each store.

Adaptation

Deciding the target store When the customer wants to visit a store, it has to make the decision that which store it must visit. The choices available to each customer are all the stores on the grid. The decision is modeled as direct objective seeking, explained below.

Objectives

Direct Objective Seeking When deciding which store to visit, the customer chooses the store which gives the minimum unhappiness value to the customer. The unhappiness value as mentioned before is the sum of travelling time (taken as travelling distance here) and average waiting time at the store in past visits. In case the person has not visited the store before, then the waiting time for that store is taken to be zero. Each customer maintains the visit counts for each store, hence gets the average waiting time as (Total waiting time for the customer in past visits to the store) / Number of visits.

To minimize the unhappiness value Each customer is making choices seeking to reduce its unhappiness value over the time. Due to each customer continuosly looking for better store alternatives, some stores over time get crowded forcing its existing customers to prefer other store alternatives.

Learning

The average waiting time and thus the decision to choose the store based on minimum unhappiness value depends on the past experience of the customer at the store. As part of past experience, a customer maintains visit count to each store and the total waiting for the customer at the store in past visits, using this memory the customer calculates the average waiting time factor in unhappiness. In case the customer has not visited the store at least once, the initial waiting time is assumed to be 0 for the customer.

Prediction

Implicit Prediction The adaptive behaviour of the customers is based on implicit prediction that choosing the store with minimum unhappiness value is likely to minimize the unhappiness value of the customer.

Sensing

Customers

Customers store the location and ID of the unique house agent associated with it.
When a customer reaches it target store, it will know the current quantity (inventory) available at the store. It updates its waiting time at the store based on the available quantity at the store and its demand.
Customer knows the location of each store and its distance from its home location.
Customers sense the crowding at a store indirectly via the calculated waiting time at the store.
Customer update the quantity of the target store upon reaching as per the its current demand.
Customer all keeps track of its past experiences for each store.

Stores

Stores can sense the number of customers associated with the store using the links between the stores and houses of current customers.
Using the links connecting store and house locations of its current customers, the store can detect the distances of the current customers to its location.

Houses

Each House is associated with a unique customer.

Interaction

Mediated Interaction between customers The customers interaction is mediated by the resource that they compete for, each customer is seeking to minimize its unhappiness value. A customer thus prefer less crowded stores over the more crowded ones, as it has to wait longer due to crowding at a store. As the number of stores and supply-rate is limited, the customers compete over the choices of the stores to get better experience.

Direct Interaction between stores and customers When a customer reaches its target store, it updates the quantity available at the store as per its current demand. When the quantity available at the store is less than the demand, then the customer has to wait at the store for time = (demand - quantity at store) / supply-rate.

Stochasticity

Uniform Random location of the customers and stores: In the beginning the customers at their associated home and the stores are located randomly over the grid.
RestTime: The time for which a customer must rest at home before going for next visit to store is random uniform in range 1 to person-max-rest-time.
Demand: The quantity required by a customer during a store visit is random uniform in range 1 to person-max-demand.
The order in which customers execute is random, to avoid bias on different customers arriving at same time at a store.

Collectives

There are no major collectives in the model. A minor case of collective in the model is the group of customers that belong to the same store. Their behaviour such as the demand value, rest time and distance from the store affects the other individual customers of the same store. Based on the arrival time and waiting at the store of the customer group, the individual customers may choose alternative stores.

Observation

The models purpose is study the customer distribution and average unhappiness over the time. Also, the unhappiness distribution over the terrain and customer population. We also observe the influence of different stores based on the current setting of their location and proximity to other competing stores.

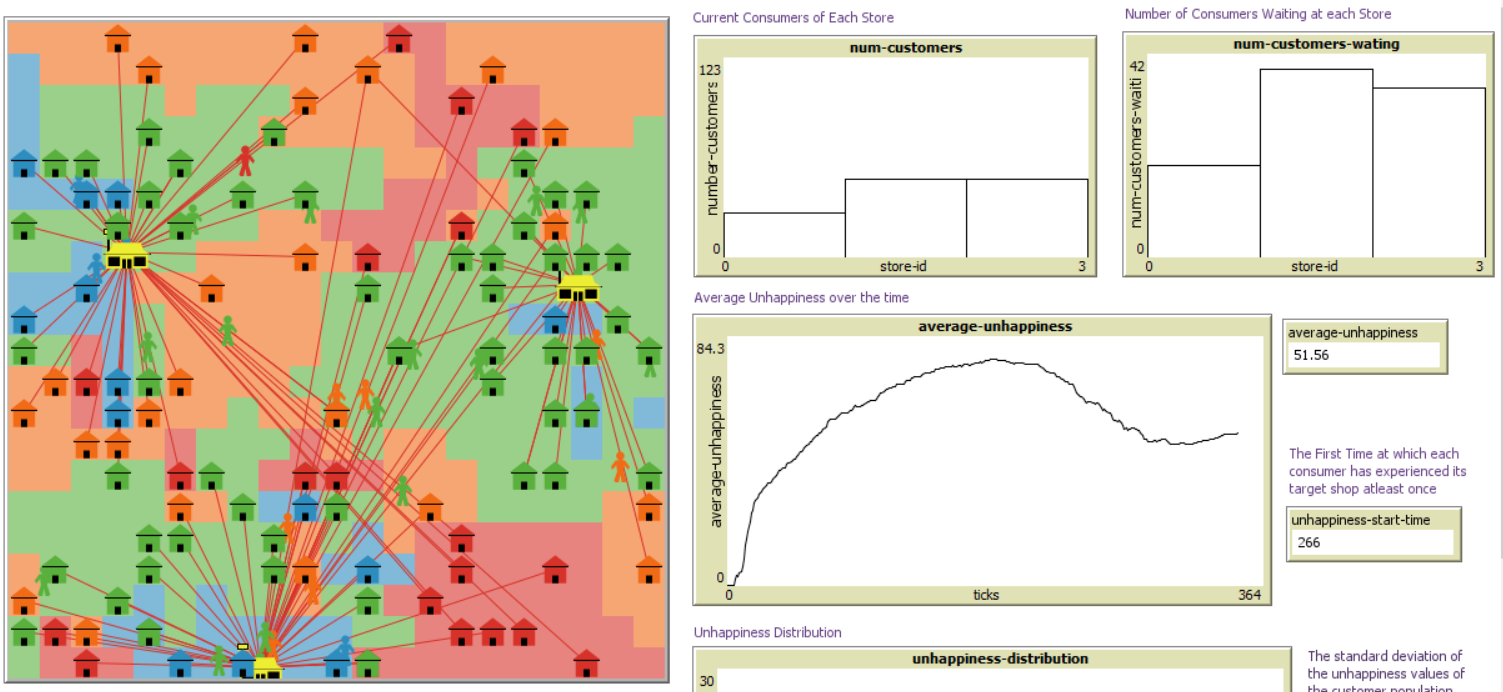

Graphical Output

The color of the customer agent and its associated house shows where does its current unhappiness value lie in the unhappiness distribution of the population.
- Blue (Happiest ones) -- if the unhappiness value is below the mean - standard deviation of the distribution
- Green (Happy) -- else if the unhappiness value is below the mean of the distribution
- Orange (Unhappy) -- else if the unhappiness value is above the mean of the distribution
- Red (Unhappiest ones) -- if the unhappiness value is above the mean + standard deviation of the distribution
The color of the patch shows a lighter tone of the color of the nearest house to the patch.
Links between the stores and houses, shows the location of the house of the current customers of the store.
The inner influence circles (every house inside the circle is the customer of the specified store only) and outer influence cirlces (show the distance from which the farthest customer is coming to the store)

Plots

The distribution of customers over the stores (Histogram): Shows how many customers each store has at the current time
The distribution of waiting customers over the stores (Histogram): Shows how many customers are currently waiting at each store
Average Unhappiness (Line): The line plot shows how the average unhappiness varies over the complete simulation
Unhappiness distribution over population (Histogram): Shows the count distribution of the unhappiness values over the population Output Monitors
Average Unhappiness value: The mean value of unhappiness value over the population (The unhappiness value for a customer is its unhappiness associated with its current target store)
Standard Deviation of Unhappiness in Population: The standard deviation of the unhappiness values over the population
Mean of inner influence radius: The mean of the inner influence radius of the stores
Unhappiness Start Time: The first time at which each customers has visited at least one of the stores since the beginning of the simulation
Standard Deviation of inner influence radius: The standard deviation of the radius of inner influence of the stores
Mean of outer influence radius
Standard Deviation of outer influence radius

Details

Initialization

The location of the stores and customers is random over the grid.
The intital quantity at each store is the store-capacity. The inventory at stores are assumed to be full in the beginning.
The customers are located at the same location as the associated unique house.
The visit count for each customer to each store is initialised to zero and the total waiting time for each store is zero as well.
All the customers at the start are in "at home" state with a uniform random rest time in range 1 to max-person-rest-time.
The color of the patches is initialized to some same color.
The house id and house coordinates of the customer is set according to the house uniquely associated with the customer.

Input data

The model does not use input data to represent the time-varying processes.

Submodels

Parameters to the Model

Supply rate (same for each store)
Max quantity of store (same for each store)
Max Demand of customers for a visit
Max Rest time of customers after a visit

Generating the house and customer pairs

For generating the house and customer pairs, first the customers are generated uniform random in the grid.
Then each customer sprouts a house and the customer then stores its ID and location.

Average Unhappiness Reporter

For calculating the average unhappiness, only those customers were considered which have at least visited the target store once.
This was done to avoid unexpected trends in average unhappiness, due to many customers which are visiting the store for first time and the average waiting for that visit was thus taken as zero.
Thus the mean is taken for the unhappiness values of the customers who have visited the current target store at least once.

Calculating the Inner and Outer Influence circles

For the inner influence radius, the distance of the closest customer to the given store who is currently customer of any other store is taken.
The outer influence raius, is the distance of the farthest current customers of the given store.

Moving stores to Mean Location of current customers with and without unhappiness weights

We used these procedures to see if the store location can be optmized in the given distribution of customers over the grid.
In attempt 1, after running the model for a long time, we can change the location of each stores as the mean coordinate of its current customers.
In attempt 2, we move the stores to the unhappiness weighted mean coordinate of its current customers. That is x-coordinate = ( Sum(Unhappines of customer * x-coordinate of the customer) )/ (Number of customers of the given store). Similarly y-coordinate = (Sum(Unhappines of customer * y-coordinate of the customer)) / (Number of customers of the given store).

Extending the Model

In our model, we have only assumed a single type of commodity being sold by the stores. We can extend the model by having more than one commodities with different supply-rates for each commodity.
Further the stores are assumed to have same suppy-rate, we can have different supply-rate for different stores. Different supply rates would signify the different production or procurement rate at the stores. Such as restaurent with larger cooking staff will have higher supply-rate of the quantities.
The customer in our model, keeps track of all the past visits to each stores. We can implement a limit to the memory of the customer, such that the customer only remembers about the past 'n' visits.
There can be customers influencing the customers that reside near their home location about the preference for the stores.

Related Models

Minority Game

At each step the minority agent group wins and their strategies are rewarded.
We can think of our model as minority game on different stores, each person tries to avoid crowded stores but there is a cost factor of distance involved.

El Farol

The problem also deals with reduced customer satisfaction when the customer finds the bar crowded during a visit.
The agents here work on strategies seeking to visit the bar when it is uncrowded.

Kolkata Paise Restaurant Problem

It is a variant of El Farol problem where customers have to choose between many restaurants.
Each restaurant serves a limited number of customers and rest are not serviced.
In our model as well, each customer has to decide which store to visit, but crowded stores result in long waiting times rather than denial of service.

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

breed [persons person]
breed [stores store]
breed [houses house]
;; the start-time (unhappiness start-time) is the first time when each customer have visited the target store at least once
;; the unhappiness-values-list keeps track of the unhappiness values of the population of the customers for calculation of standard-deviation
globals [start-time unhappiness-values-list]

persons-own [house-id home-xcor home-ycor
  ;; who-number of the home belonging to person, the x-coordinate and y-coordinate of the home
  store-travel-time-list store-visit-count-list store-total-waiting-time-list
  ;; store-travel-time-list contains the list of travel-distance from home to each store, store-visit-count-list contains the total number of visits by the person to each store
  ;; store-waiting-time-list contains the total waiting time for each store in the past visits of the person
  rest-time wait-time demand target-store-id
  ;; how much time the person will rest at home after returning from store
  ;; what is the quantity of the item that person requires in current visit to store
  ;; in the beginning of journey, the person decides which store to visit, the who of target store is saved in target-store-id
  at-home? at-store? travelling-to-store? travelling-to-home?]
  ;; the state variables, at-home is true if the person is at home, travelling-to-store if on way to store, travelling-to-home if on way to home, at-store if at store currently
stores-own [quantity]
;; every store keeps track of its current quantity

;; Reports the current average-unhappiness of the population
;; A person's unhappiness for a given store = Avg. Waiting Time at the store + Travel Time for the store (proportional to distance of store from home)
;; A person's unhappiness is counted towards average unhappiness, only when the person has visited the current targeted store at least once.
;; ^ This is to avoid bad unhappiness values when the person is yet to experience the target store atleast once

to-report average-unhappiness
  ;; Initialize the list for the unhappiness values of the customers
  set unhappiness-values-list []
  ;; The number of customers which have actually experienced the target-store at least once
  let actual-num-consumers 0
  ask persons [
    ;; If the person has visited the target store at least once
    if (item target-store-id store-visit-count-list) > 0
    [
      ;; insert its unhappiness value in the unhappiness list for the population
      set unhappiness-values-list lput store-unhappiness target-store-id unhappiness-values-list
      set actual-num-consumers actual-num-consumers + 1 ]
  ]
  ;; If all of the customers have atleast experienced their current target store at least once, then set the current time as the start-time
  if actual-num-consumers = num-consumers and start-time = 0 [set start-time ticks]

  ;; color the customers and houses as per the unhappiness distribution
  ;; report the standard-deviation and mean of the unhappiness if the actual numbers of customers are greater than 2
  if (actual-num-consumers >= 2)
  [
    let std-dev-unhappiness standard-deviation unhappiness-values-list
    let mean-unhappiness mean unhappiness-values-list
    ;;set the colors of the customer and house agents
    set-customer-unhappiness-colors std-dev-unhappiness mean-unhappiness
    ;; If the user has turned ON the visual tool to show the unhappiness distribution over the patches, then color the patches accordingly
    ;; otherwise set all the patches to turquoise color
    ifelse (show-unhappiness-terrain?) [show-unhappiness-terrain] [ ask patches [set pcolor turquoise] ]
  ]
  ;; report the average unhappiness value
  ifelse actual-num-consumers > 0
  [report mean unhappiness-values-list]
  [report 0]
end

;; sets the color of the customers and houses as per the current unhappiness value in the population distribution

to set-customer-unhappiness-colors [std-dev mean-val]
  ask persons [
    ;; get the unhappiness value of the customer
    let person-unhappiness store-unhappiness target-store-id
    ;; red color for person with unhappiness more than mean value + standard-deviation
    (ifelse (person-unhappiness >= mean-val + std-dev) [set color red]
      ;; orange color for person with unhappiness above mean
    (person-unhappiness >= mean-val) [set color orange]
      ;; sky color for unhappiness below the mean-value - standard deviation, the happiest of the customers
    (person-unhappiness < mean-val - std-dev) [set color sky]
      ;; rest green color for below mean
    [ set color green])
    ;; set the same color for the house as of the associated customer
    ask house house-id [set color [color] of myself]
  ]
end

;; set the color of the patches as per the color of the nearest house (denoting the unhappiness value of customer residing in the region)

to show-unhappiness-terrain
  ask patches [
    ;; local variable to store the new color value of the patch
    let my-new-color 0
    ;; get the color of the nearest house to the patch
    ask houses with-min [distance myself]
    [
      set my-new-color [color] of self
    ]
    ;; set a lighter tone for the patch color
    set pcolor my-new-color + 2
  ]
end

;; reports the first time, when all of the customers have experienced their target store atleast once

to-report unhappiness-start-time
  report start-time
end

to setup
  clear-all
  ask patches [set pcolor turquoise]
  ;; initialize the unhappiness start-time to 0
  set start-time 0
  ;; setup the stores in the grid
  setup-stores-initial

  ;; setup the persons in the grid
  setup-homes-and-consumers

  ;; initialize the lists and initial state variables for the persons
  ask persons [ initialize-person-lists-and-state ]
  reset-ticks
end

;; if we want keep the location of stores same, but want to try a new location of consumers

to setup-consumers
  clear-all-plots
  ask patches [set pcolor turquoise]
  ;; initialize the unhappiness start-time to 0
  set start-time 0
  ;; kill all the persons and houses and generate a new set of customers and houses with different location
  ask persons [die]
  ask houses [die]
  ;; reset the quantity in the stores
  ask stores [set quantity store-capacity]
  ;; generate the customer and house pairs in the grid
  setup-homes-and-consumers
  ;; intialize the lists for each consumer
  ask persons [initialize-person-lists-and-state]
  reset-ticks
end

;; if we want to keep the same location of consumers, but want to try a new location for shops

to setup-stores
  clear-all-plots
  ;; initialize the unhappiness start-time to 0
  set start-time 0
  ;; set a unifrom random location of the stores
  ;; intially the inventory (quantity) at each store is full
  ask stores [
    setxy random-xcor random-ycor
    set quantity store-capacity
  ]
  ;; initialize the list and state variables of the customers
  ask persons [initialize-person-lists-and-state]
  reset-ticks
end

;; create the stores in the grid

to setup-stores-initial
    create-stores num-stores [
    setxy random-xcor random-ycor
    set shape "building store"
    set color yellow
    set size 1.5
    ;; intially the inventory (quantity) at each store is full
    set quantity store-capacity
  ]
end

;; move each of the store to the average coordinate of its current customers

to move-shops-to-customers
  ask stores [
    let num-customers count link-neighbors
    let mean-x-customer mean [xcor] of link-neighbors
    let mean-y-customer mean [ycor] of link-neighbors
    ;; move the store to the mean coordian
    setxy mean-x-customer mean-y-customer
  ]
  reset-consumers
end

;; move the store to the unhappiness weighted mean coordinate of its current customers

to move-shops-to-unhappiness-customers
  ask stores [
    let current-store-id [who] of self
    ;; the total unhappiness of current store customers
    let total-customer-unhappiness 0
    let mean-unhappiness-x-customer 0
    let mean-unhappiness-y-customer 0
    ;; ask the houses of its customers
    ask link-neighbors[
      let current-house-id [who] of self
      ;; get the customer who is associated with this house
      let person-here persons with [house-id = current-house-id]
      ;; ask the customer associated with this house
      ask person-here
      [
        let unhappiness-value store-unhappiness current-store-id
        ;; take the weigted x and y coordinate of the customer
        set mean-unhappiness-x-customer  mean-unhappiness-x-customer + (xcor * unhappiness-value)
        set mean-unhappiness-y-customer  mean-unhappiness-y-customer + (ycor * unhappiness-value)
        set total-customer-unhappiness total-customer-unhappiness + unhappiness-value
      ]
    ]
    ;; finally get the unhappiness weighted customer coordinates
    set mean-unhappiness-x-customer mean-unhappiness-x-customer / total-customer-unhappiness
    set mean-unhappiness-y-customer mean-unhappiness-y-customer / total-customer-unhappiness

    setxy mean-unhappiness-x-customer mean-unhappiness-y-customer
  ]
  reset-consumers
end

;; reset the customer variables and set the location to its home location
;; reset the quantity of the store as well

to reset-consumers
  clear-all-plots
  set start-time 0
  ;; reset the quantity in the stores
  ask stores [set quantity store-capacity]
  ;; intialize the lists for each consumer
  ask persons [initialize-person-lists-and-state]
  reset-ticks
end

;; create the customer and the associated house pairs on the grid

to setup-homes-and-consumers
    ;; create persons/consumers
    create-persons num-consumers [
    setxy random-xcor random-ycor
    ;; the initial location will be the location of person's home as well
    set home-xcor xcor
    set home-ycor ycor
    set shape "person"
    set color blue
    ;; store the current person in local variable parent
    let parent self
    ;; ask the patch on the where the person is standing to create an agent of breed house
    ask patch-here[
      sprout-houses 1 [
        set shape "house"
        set color blue
        ;; store the who number of house in local variable of the associated customer
        let current-house-id who
        ;; ask the customer stored as parent, to set its house-id to the who number of this house
        ask parent [
          set house-id current-house-id
        ]
      ]
    ]
  ]
  ;; reset the unhappiness values of the population list
  set unhappiness-values-list []
end

;; initializes the calling customer's lists and initial-state

to initialize-person-lists-and-state
    ;; calculate the travelling distance to each store
    set store-travel-time-list n-values num-stores distance-from-store
    ;; initialize visit count for each store to zero
    set store-visit-count-list n-values num-stores [i -> 0]
    ;; initialize the total waiting time for each store to zero
    set store-total-waiting-time-list n-values num-stores [i -> 0]
    ;; set the initial state of person as at home
    set at-home? true
    ;; initialize the rest-time of the person
    set rest-time random person-max-rest-time
    ;; place the person at associated house
    setxy home-xcor home-ycor
end

;; reports the euclidean distance from calling customer's house to the store with given who number as store-id

to-report distance-from-store [store-id]
  let distance-to-store 0
  ;; store the distance from home to store in distance-to-store variable
  ask house house-id [ set distance-to-store distance store store-id]
  ;; resport the distance
  report distance-to-store
end

;; reports the best store option for the calling customer depending on the unhappiness values
;; unhappiness for a store = distance-from-home + (average waiting time at the store)

to-report best-store-option
  ;; prepare the unhappiness value for each store and store in a local variable - list
  let store-unhappiness-list n-values num-stores store-unhappiness
  ;; find the minimum unhappiness value
  let min-unhappiness min store-unhappiness-list
  ;; report the index (who of the store in this case) with the given minimum unhappiness-value
  report position min-unhappiness store-unhappiness-list
end

;; reports the unhappiness for a particular store for the calling customer
;; unhappiness for a store = distance-from-home + (average waiting time at the store)

to-report store-unhappiness [store-id]
  ;; initally unhappiness = distance-from-home
  let unhappiness item store-id store-travel-time-list
  ;; add average waiting time for the store to the unhappiness value, if the number of visits to the store > 0
  if (item store-id store-visit-count-list) > 0 [
    set unhappiness unhappiness + (item store-id store-total-waiting-time-list) / (item store-id store-visit-count-list)
  ]
  ;; report the unhappiness value
  report unhappiness
end

;; display the inner influence circles for each store
;; every house strictly inside this radius is a customer to calling store only, not to any other store

to-report inner-influence-radius
  let current-store self
  ;; the list of the houses of the current customers of the store
  let current-store-link-neighbors link-neighbors
  ;; report the distance of the nearest home which is a customer of another store
  report min [distance current-store] of houses with [not member? self current-store-link-neighbors]
end

;; the distance of the home of the farthest customer for the store
;; this is the radius of the star network of this

to-report outer-influence-radius
  let current-store self
  ;; report the distance of the home of the farthest customer
  report max [distance current-store] of link-neighbors
end

to go
  ;; perform the following actions for each customer
  ask persons[run-consumer-finite-state-logic]
  ;; increase the quantity in each store by the supply-rate
  ask stores [
    set quantity quantity + supply-rate
    ;; if the quantity of the store goes above its capacity, set quantity to exactly its capacity
    if quantity > store-capacity [set quantity store-capacity]
  ]
  ;; clear all the previous drawings
  clear-drawing
  ;; display inner-circles if inner-influence-circles? switch is ON
  if inner-influence-circles? [display-inner-influence-circles]
  ;; display outer-circles if outer-influence-circles? switch is ON
  if outer-influence-circles? [display-outer-influence-circles]
  ;; hide links if show-links? switch if OFF
  ask links [set hidden? not show-links?]
  tick
end

;; contains the logic of customer for the go procedure

to run-consumer-finite-state-logic
  ;; fetch the target store via the target-store-id
    let target-store store target-store-id
    (ifelse
      ;; if the person is currently inside home
      at-home? = true [
        ;; if the person at home doesn't need rest
        ifelse rest-time = 0 [
          ;; set demand to a random value over the range
          set demand random person-max-demand

          let person-home house house-id
          ;; kill the link with previous target-store
          ask target-store[
            let link-with-person-home link-with person-home
            if link-with-person-home != nobody [ ask link-with-person-home [die] ]
          ]
          ;; calculate the best store, as per the unhappiness values
          set target-store-id best-store-option
          ;; update the target-store local variable as well
          set target-store store target-store-id
          ;; create a link between updated target-store and home of the person
          ask target-store[create-link-with  person-home ask link-with person-home [set color red]]

          ;; set at-home to false, set travelling-to-store to true
          set at-home? false
          set travelling-to-store? true]
        ;; otherwise if the person requires rest, then person stays at home and rest-time is decreased by 1
        [set rest-time rest-time - 1]
      ]
      ;; if the person is on its way to store
      travelling-to-store? = true[
          ;; if reached the store (that is when distance from store is less or equal to one)
          ifelse distance target-store <= 1[
          ;; move inside the shop
          setxy [xcor] of target-store [ycor] of target-store
          ;; travelling-to-store is set to false and at-store set to true
            set travelling-to-store? false
            set at-store? true ]
        ;; if still far from store, then face towards the store and move 1 step forward
            [ face target-store fd 1]
       ]
      ;; if the person is inside store
      at-store? = true [
        ;; try to get the demand fulfilled
        ifelse demand > 0 [
         ;; initialize the wait-time if the quantity at store is less than the demand of person
        if [quantity] of target-store < demand [ set wait-time floor (( demand - [quantity] of target-store ) / supply-rate) ]
          ;; increase the store visit count and total waiting time for the store accordingly
          set store-visit-count-list replace-item target-store-id store-visit-count-list (item target-store-id store-visit-count-list + 1)
          set store-total-waiting-time-list replace-item target-store-id store-total-waiting-time-list (item target-store-id store-total-waiting-time-list + wait-time)
          let person-demand demand
          ;; update the quantity at the store and the demand is fulfilled, set it to zero
          ask target-store[set quantity quantity - person-demand]
          set demand 0]
        [
        ;; if waiting is over
        ifelse wait-time = 0 [
            ;; move outside the store and get on way back to home
          set at-store? false
          set travelling-to-home? true]
          ;; if still needs to wait, decrease wait-time by 1
          [set wait-time wait-time - 1]]
      ]
      ;; if is travelling to home
      travelling-to-home? = true [
        ;; if reached near home
        ifelse (distancexy home-xcor home-ycor) <= 1 [
          ;; move inside home and set travelling to home as false
          setxy home-xcor home-ycor
          set travelling-to-home? false
          ;; set a rest-time uniform random in range 1 to person-max-rest-time
          set rest-time random person-max-rest-time
          set at-home? true ]
        ;; if far from home, face towards home and move forward one step
        [ facexy home-xcor home-ycor fd 1]]
     )
end

;; display the inner influence circle for the calling store-agent

to display-inner-influence-circles
  ask stores [
    let distance-influence inner-influence-radius
    stamp-circle "circle" distance-influence
  ]
end

;; display the outer influence circles for the calling store-agent

to display-outer-influence-circles
    ask stores [
    let distance-influence outer-influence-radius
    stamp-circle "circle 3" distance-influence
  ]
end

;; to draw the influence circles on the grid
;; it stamps a shape of given size as "distance-influence * 2"
;; parameters are drawing-shape, the shape of the stamp, distance-influence, the radius in case of circles

to stamp-circle [drawing-shape distance-influence]
  ;; store-xcor and store-ycor stores the coordinates of the current store
  let store-xcor xcor
  let store-ycor ycor
  ;; ask the patch-here to create a circle turle, then stamp and then die
  ask patch-here[
    sprout 1[
      ;; set the center of the turtle at the store
      setxy store-xcor store-ycor
      set shape drawing-shape
      ;; lighten the shade of the color
      set color color + 1
      ;; make the turtle half transparent
      set color lput 125 extract-rgb color
      ;; set appropriate turtle-size for the
      set size 2 * ( distance-influence )
      ;; mark the color impression of the turtle and make it die
      stamp
      die
    ]
  ]
end

There are 3 versions of this model.

Uploaded by	When	Description	Download
Sachin Yadav	over 4 years ago	Remove Unhappiness Population Distribution Histogram	Download this version
Sachin Yadav	over 4 years ago	Update the Image Files in Info tab	Download this version
Sachin Yadav	over 4 years ago	Initial upload	Download this version

Attached files

File	Type	Description	Last updated
Customer Stores Choice Model.pdf	pdf	Research Paper	over 4 years ago, by Sachin Yadav	Download
Customer Stores Choice Model.png	preview	Preview for 'Customer Stores Choice Model'	over 4 years ago, by Sachin Yadav	Download
customer_logic.png	png	Customer Logic Flowchart	over 4 years ago, by Sachin Yadav	Download
store_logic.png	png	Store Logic Flowchart	over 4 years ago, by Sachin Yadav	Download

This model does not have any ancestors.

This model does not have any descendants.

NetLogo
