Neuron Model

1 collaborator

WHAT IS IT?

This model simulates the electrophysiological properties of a single cell neuron. It shows how membrane potential patterns can be affected by ion concentration values and concentration densities of neuron channels.

HOW IT WORKS

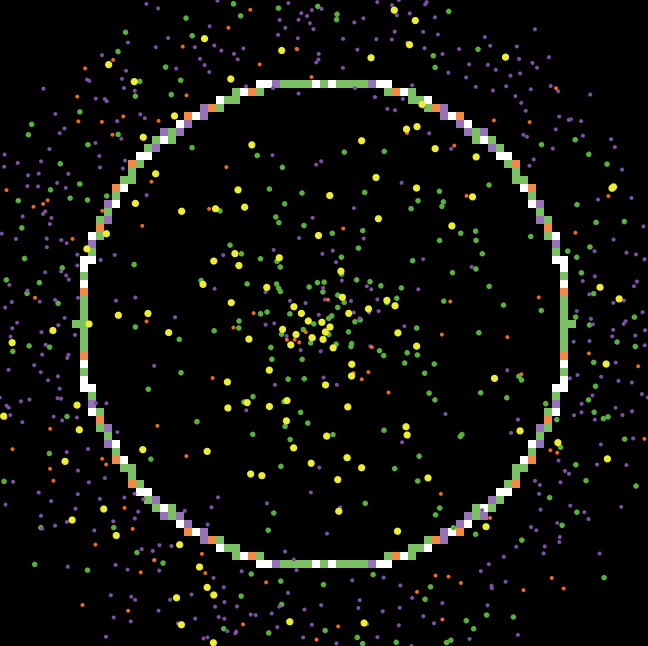

The turtles are ions. Colored patches are membrane channels. White patches are impassable membrane segments. Green patches and turtles are potassium ions and potassium ion specific channels. Purple refers to sodium ion. Orange refers to calcium ion. Yellow responds to chlorine ion.

At every tick each ion moves. Movement includes ionic repulsion/attraction from nearby ions, physical repulson from colliding with nearby ions, attraction towards ion channels, movemnt through an ion channel, and movement towards the polarized membrane.

At every tick the membrane-potential is calculatied using the Nernst equation (en.wikipedia.org/wiki/Nernst_equation). The equation calculates the logarithmic ratio of extracellular net negative charges over intracellular net negative charges (which are calculated from ion charge values).

When the membrane potential is updated, the state of every voltage gated channel is updated ("open" "closed" or "inactive"). If a channel is open, it will take ions that match its class and directional specificity and push them through to the other side of the membrane, changing the location state of the ion in the process.

If an ion "hops" through the membrane without going through a channel, it will be moved back to the other side the next tick because its location state did not change.

The membrane potential plot shows the membrane potential over time. The higher it is, the more positive ion in the cell/negative ion outside the cell.

HOW TO USE IT

Choose the intracellular and extracellular concentrations of each ion. Choose the concentration densities of each type of channel.

Int-conc-... refers to the intracellular concentration of the following ion
Ext-con-... refers to the extracellular concentration of the following ion
Channel density refers to the percentage of membrane patches that will be that type of channel. These types include.
- K channel (outward k at ~30 mV)
- K Leak channel (outward k)
- K Inward Rectifyinhg Channel (inward k at ~-60 mV)
- Na Channel (inward na at ~-30 mV)
- Ca L Type Channel (inward Ca at ~10 mV)
- Ca T Type Channel (inward Ca at ~-10 mV)

THINGS TO NOTICE

The membrane potential behavior varies greatly with different parameter inputs. Notice how small things like less Na channels or relatively high intracellular potassium ion concentrations greatly affect the electrophysiological behavior.

THINGS TO TRY

For standard, action potential eliciting behaviors, make sure intracellular k concentrations is high (~150 mM), extracellular na ion is high (~ 150 mM) and there is some presence of extracellular ca and k ion.

There are various configurations that will elicitt action potentials, and some that will come close, so try manipulating the inputs and see how the electrophysiological parameters change.

Its important to know that ions can only flow in the direction of their channels, so putting a lot of Na inside the cell will change the membrane potential but will limit the dynamics of the cell.

EXTENDING THE MODEL

This model is incomplete and can always use more volted gated membrane channel classes (found in draw-cell).

The first major extension that will be added is ligand gating properties. A lot of channels with critical functions are opened by signaling molecules. A good place to start would be adding NMDA and AMPA receptors which open to glutamate molecule attachment, and let in Na ion until the ligand detaches.

NETLOGO FEATURES

In vitro, ion movement is determined by a resultant force vector (ionic force, collision force, channel pull, etc.). In NetLogo it is possible to model movement by completing these force induced movements sequentially. Although it is not entirely in line with the actual principle, it is smoother in actual implementation and is super effective in creating clean movement.

RELATED MODELS

Membrane Formation. Different scale, but useful for demonstrating ionic movement.

CREDITS AND REFERENCES

Brendan Frick 2015

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

breed [ions ion]

globals [
  cell-radius
  k-size
  na-size
  ca-size
  cl-size
  physical-repel-distance
  physical-repel-force
  ionic-interaction-distance
  ionic-interaction-force
  concentration-gradient
  temperature
  membrane-potential
  ]

ions-own[charge classifier location]

patches-own[voltage-gate voltage-inactivate voltage-close direction gate state selectivity]

to setup
  clear-all
  reset-ticks

  ask patches [set pcolor black]

  ;;; Constants
  set physical-repel-distance .5
  set ionic-interaction-distance 3
  set physical-repel-force -.3
  set ionic-interaction-force .1
  set temperature 20

  ;;; Ionic sizes proportionate
  set k-size (1.38 / 2)
  set na-size (1.02 / 2)
  set ca-size (1 / 2)
  set cl-size (1.81 / 2)

  ;; Draw cell
  set cell-radius 30
  draw-cell

  ;; Draw ions
  make-ions "ext" "k" ext-conc-potassium * 3.0
  make-ions "ext" "na" ext-conc-sodium * 3.0
  make-ions "ext" "ca" ext-conc-calcium * 3.0
  make-ions "ext" "cl" ext-conc-chlorine * 3.0
  make-ions "int" "k" int-conc-potassium * 3.0
  make-ions "int" "na" int-conc-sodium * 3.0
  make-ions "int" "ca" int-conc-calcium * 3.0
  make-ions "int" "cl" int-conc-chlorine * 3.0


  ;; Update membrane potential
  update-membrane-potential
  tick
end

;; Moves cells, updates potential and states, sweeps cell

to go
  tick
  update-membrane-potential
  update-vg-channel-states
  sweep-cell
  ask turtles[
    move
  ]
end


;; Turtle
;;;moves turtles

to move
  ionic-attract-repel
  physical-repulsion
  patches-pull
  membrane-pass
  random-move
end

;; Turtle
;;;; Moves away from turtles that are nearly touching. Simulates collision

to physical-repulsion
  ; Select a random neighbor that is too close and move away from it
  let too-near one-of other turtles in-radius physical-repel-distance with [location = [location] of myself]
  if too-near != nobody
  [
    face too-near
    fd physical-repel-force
    if ([pcolor] of patch-here) != color and ([pcolor] of patch-here) != black
    [
      bk physical-repel-force
    ]
  ]
end

;;Turtle
;;; Picks in range ion and reacts accordingly
;;; Excerts force on other ion

to ionic-attract-repel
  ; Select a random neighbor and interact with it
  let near one-of other ions in-radius ionic-interaction-distance with [location = [location] of myself]
  if near != nobody
  [
    face near
    fd ionic-interaction-force * (charge * (0 - ([charge] of near))) * .5
    ask near[ fd ionic-interaction-force * (charge * (0 - ([charge] of near))) * .5]

    if ([pcolor] of patch-here) != color and ([pcolor] of patch-here) != black
    [
      bk ionic-interaction-force * (charge * (0 - ([charge] of near)))
    ]
  ]
end


;; Turtle
;;;; Patches pull in turtles. Simulates ionic gradient. Increases permeability of cell

to patches-pull
  let membrane one-of patches in-radius 3 with [pcolor = [color] of myself]
  if membrane != nobody
  [
    face membrane
    fd 1
  ]
end

;;Turtles
;;;;Goes through membrane if selectivity parameters match, turtle is on neighbor, and patch state is open

to membrane-pass
  ;; Select all transmembrane patchesb
  let membrane ([neighbors] of patch-here) with [pcolor mod 10 = 6]

  if any? membrane
  [
    let chosen one-of membrane with [selectivity = [classifier] of myself or (selectivity = "none")]
    if chosen != nobody
    [
      face patch-at 0 0
      ifelse location = "ext"
      [
        if ([direction] of chosen) = "in" and ([state] of chosen) = "open"
        [
          set location "int"
          fd 2
        ]
      ]
      [
        if ([direction] of chosen) = "out" and ([state] of chosen) = "open"
        [
          set location "ext"
          bk 2
        ]
      ]
    ]
  ]
end

;; turtle
;;;; Moves randomly to the cell membrane

to random-move
  face patch-at 0 0
  right random 180
  left random 180
  let temp -.7
  if location = "ext"
  [
    set temp .7
  ]
  fd temp
  if ([pcolor] of patch-here) != color and ([pcolor] of patch-here) != black
  [
    bk temp
  ]
end

;;Takes cells that 'hopped' membrane without going through channel and places them on their side

to sweep-cell
 ;; Check for cells that 'hopped' membrane
 ask turtles[
   ifelse location = "ext"
   [
     if (distancexy 0 0) < cell-radius - 1
     [
       setxy 0 0
       right random 360
       forward cell-radius + 3 + random(10)
     ]
   ]
   [
     if (distancexy 0 0) > cell-radius + 1
     [
       setxy 0 0
       right random 360
       forward random cell-radius
     ]
   ]
 ]
end

;; Draws cell membrane and assigns channels to patches.

to draw-cell
  let i 0
  while [i < 720]
  [
    let membrane_pot (patches with [(abs pxcor = (floor (abs ((cell-radius + 1) * (cos(i / 2)))))) and (abs pycor = (floor (abs ((cell-radius + 1) * (sin(i / 2)))))) or (abs pxcor = (ceiling (abs (cell-radius * (cos(i / 2)))))) and (abs pycor = (ceiling (abs (cell-radius * (sin(i / 2))))))])
    if membrane_pot != Nobody
    [
      ask membrane_pot
      [
        set pcolor white
      ]

      ;; Voltage-gated potassium channel
      if (random 100) < k-channel-density
      [
        ask membrane_pot
        [
          set pcolor green + 1
          set selectivity "k"
          set voltage-gate 20
          set voltage-close -60
          set voltage-inactivate Nobody
          set gate ">"
          set state "closed"
          set direction "out"
        ]
      ]

      ;; Voltage-gated sodium channel
      if abs (random 100 - k-channel-density) < na-channel-density
      [
        ask membrane_pot
        [
          if pcolor = white
          [
            set pcolor violet + 1
            set selectivity "na"
            set voltage-gate (-60 + random(2))
            set voltage-close voltage-gate
            set voltage-inactivate (20)
            set gate ">"
            set state "closed"
            set direction "in"
          ]
        ]
      ]

      ;; Voltage-gated l calcium channel
      if abs random (100 - k-channel-density - na-channel-density) < l-ca-channel-density
      [
        ask membrane_pot
        [
          if pcolor = white
          [
            set pcolor orange + 1
            set selectivity "ca"
            set voltage-gate 5 + random(10)
            set voltage-inactivate Nobody
            set voltage-close Nobody
            set gate ">"
            set state "closed"
            set direction "in"
          ]
        ]
      ]

      ;; Voltage-gated t calcium channel
      if abs random (100 - k-channel-density - na-channel-density - l-ca-channel-density) < t-ca-channel-density
      [
        ask membrane_pot
        [
          if pcolor = white
          [
            set pcolor orange + 1
            set selectivity "ca"
            set voltage-gate -20
            set voltage-inactivate Nobody
            set voltage-close -20
            set gate ">"
            set state "closed"
            set direction "in"
          ]
        ]
      ]

      ;; Leak K Channel
      if abs random (100 - k-channel-density - na-channel-density - l-ca-channel-density - t-ca-channel-density) < leak-k-channel-density
      [
        ask membrane_pot
        [
          if pcolor = white
          [
            set pcolor green + 1
            set selectivity "k"
            set voltage-gate Nobody
            set voltage-inactivate Nobody
            set voltage-close Nobody
            set gate ">"
            set state "open"
            set direction "out"
          ]
        ]
      ]

      ;; Inward Rectifying (Nephron cells)
      if random (100 - k-channel-density - na-channel-density - l-ca-channel-density - t-ca-channel-density - leak-k-channel-density) < inward-k-channel-density
      [
        ask membrane_pot
        [
          if pcolor = white
          [
            set pcolor green + 1
            set selectivity "k"
            set voltage-gate -65 + random(10)
            set voltage-inactivate Nobody
            set voltage-close -50 + random(10)
            set gate "<"
            set state "closed"
            set direction "in"
          ]
        ]
      ]
    ]
    set i (i + 1)
  ]
end

;;Creates ions with location classifiers and number of ions

to make-ions[loc class conc]
  ifelse loc = "ext"
  [
    create-ions(conc)
    [
      right random 360
      forward (cell-radius + 3 + random(10))
      set shape "circle"

      set classifier class
      set location loc

      ifelse class = "k"
      [
        set charge 1
        set color green
        set size k-size
      ]
      [
        ifelse class = "na"
        [
          set charge 1
          set color violet
          set size na-size
        ]
        [
          ifelse class = "ca"
          [
            set charge 2
            set color orange
            set size ca-size
          ]
          [
            set charge -1
            set color yellow
            set size cl-size
          ]
        ]
      ]
    ]
  ]
  [
    create-ions(conc)
    [
      right random 360
      forward random cell-radius
      set shape "circle"

      set classifier class
      set location loc

      ifelse class = "k"
      [
        set charge 1
        set color green
        set size k-size
      ]
      [
        ifelse class = "na"
        [
          set charge 1
          set color violet
          set size na-size
        ]
        [
          ifelse class = "ca"
          [
            set charge 2
            set color orange
            set size ca-size
          ]
          [
            set charge -1
            set color yellow
            set size cl-size
          ]
        ]
      ]
    ]
  ]
end

;; Changes patch states (open, closed, inactive) basded on voltage gating properties

to update-vg-channel-states
  carefully
  [
    ask patches with [pcolor != black][
      if pcolor mod 10 = 6 and (voltage-gate != Nobody)
      [
        ifelse gate = ">"
        [
          if state = "closed"
          [
            if membrane-potential > voltage-gate
            [
              set state "open"
            ]
          ]
          if state = "open"
          [
            if membrane-potential < voltage-close
            [
              set state "closed"
            ]
            if voltage-inactivate != Nobody
            [
              ;let prob abs (voltage-inactivate - membrane-potential)
              ;if random (prob * 100) < 1 [set state "inactive"]
              if membrane-potential > voltage-inactivate[set state "inactive"]

            ]
          ]

          if state = "inactive"
          [
            if membrane-potential < voltage-close
            [
              set state "closed"
            ]
          ]
        ]

        ;; Else
        [
          if state = "closed"
          [
            if membrane-potential < voltage-gate
            [
              set state "open"
            ]
          ]
          if state = "open"
          [
            if membrane-potential > voltage-close
            [
              set state "closed"
            ]
            if voltage-inactivate != Nobody
            [
              let prob abs (voltage-inactivate - membrane-potential)
              if membrane-potential > voltage-inactivate[set state "inactive"]
            ]
          ]

          if state = "inactive"
          [

            if membrane-potential > voltage-close
            [
              set state "closed"
            ]
          ]
        ]
      ]
    ]
  ]
  [
    ;;None
  ]
end


;; Calculates membrane potential

to update-membrane-potential
  let K-out count turtles with [classifier = "k" and location = "ext"]
  let K-in count turtles with [classifier = "k" and location = "int"]
  let Na-out count turtles with [classifier = "na" and location = "ext"]
  let Na-in count turtles with [classifier = "na" and location = "int"]
  let Ca-out count turtles with [classifier = "ca" and location = "ext"]
  let Ca-in count turtles with [classifier = "ca" and location = "int"]
  let Cl-out count turtles with [classifier = "cl" and location = "ext"]
  let Cl-in count turtles with [classifier = "cl" and location = "int"]

  ;;(8.314 * (273.15 + temperature) / 96485)
  carefully
  [
    set membrane-potential (65 * (ln( (K-in + Na-in + (2 * Ca-in) + Cl-out) / (K-out + Na-out + (2 * Ca-out) + Cl-in))))
  ]
  [
    set membrane-potential "error"
  ]
end

There is only one version of this model, created about 10 years ago by Brendan Frick.

Attached files

File	Type	Description	Last updated
BrendanFrick_June1_v3.txt	word	Progress Report 3	about 10 years ago, by Brendan Frick	Download
BrendanFrick_May18.docx	word	Progress Report 1	about 10 years ago, by Brendan Frick	Download
BrendanFrick_May25_v2.txt	word	Progress Report 2	about 10 years ago, by Brendan Frick	Download
NetLogo Neuron Model.pptx	powerpoint	Poster Slam	about 10 years ago, by Brendan Frick	Download
Neuron Model.png	preview	Preview for 'Neuron Model'	about 10 years ago, by Brendan Frick	Download
Neuron-BrendanFrick.pdf	pdf	Report	about 10 years ago, by Brendan Frick	Download
Neuron.pptx	powerpoint	Poster	about 10 years ago, by Brendan Frick	Download
Proposal.docx	word	Proposal	about 10 years ago, by Brendan Frick	Download

This model does not have any ancestors.

This model does not have any descendants.

NetLogo
