WHAT IS IT?

This example demonstrates a means of using the TIE command to make turtle labels you can position how you want them.

NetLogo always positions turtle labels the same way, in the lower right corner of the turtle's bounding box, and right justified.

You can sometimes adjust horizontal positioning of labels to your liking by using labels with space characters in them, e.g.:

  set label "     foo"
  set label "foo     "

This example demonstrates a technique that gives you even more control.

HOW IT WORKS

Instead of setting the label on our turtle directly, we make a second turtle, attach a label to it, position it how we want, and use the TIE command to attach the second turtle so when the first turtle moves, the second turtle comes with it.

We use a directed link from the first turtle to the second turtle, so the "tie" relationship is one-way, so we're free to move the label around without affecting the main turtle.

HOW TO USE IT

Press SETUP, then GO. You can adjust the BANNER-ANGLE and BANNER-DISTANCE sliders as the model runs.

NETLOGO FEATURES

Note the use of the TIE primitive.

RELATED MODELS

Halo Example

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

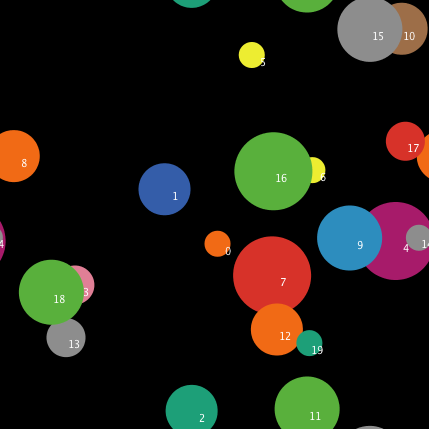

Click to Run Model

breed [circles circle]
breed [banners banner]

to setup
  clear-all
  set-default-shape circles "circle"
  create-circles 20 [
    setxy random-xcor random-ycor
    set size 2 + random 5
    attach-banner who
  ]
  reset-ticks
end

to attach-banner [x]  ;; circle procedure
  hatch-banners 1 [
    set size 0
    set label x
    create-link-from myself [
      tie
      hide-link
    ]
  ]
end

to reposition  ;; banner procedure
  move-to one-of in-link-neighbors
  set heading banner-angle
  fd banner-distance
end

to go
  ask circles [ fd 0.01 ]
  ask banners [ reposition ]
  tick
end


; Public Domain:
; To the extent possible under law, Uri Wilensky has waived all
; copyright and related or neighboring rights to this model.
