Movie Example

1 collaborator

Uri Wilensky (Author)

WHAT IS IT?

This shows how to capture a movie of your model.

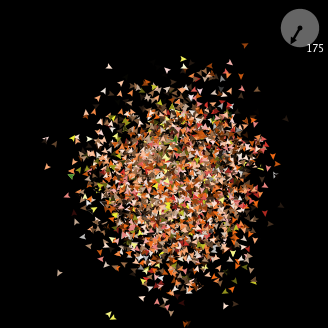

The model is of a population of birds. Once a bird is 10 ticks old, it can hatch two offspring and die. The number of birds, of course, increases exponentially.

The procedure make-movie runs the model, captures the view to a movie, and exports the movie to a file.

HOW TO USE IT

Click make-movie to capture a movie. NetLogo will prompt you for the location of the movie file.

If you want to make a movie of your own model, you can copy and paste the make-movie procedure into your model.

THINGS TO NOTICE

Like any model with exponential population growth, this model slows down after each iteration. As it takes longer for NetLogo to compute each iteration, actual time gets slower and slower relative to "model time" (the number of iterations). Thus, the gray spinner in the upper right corner of the view visibly slows down.

Creating a movie of the model solves the problem. The movie allows us to observe the model while real time and model time progress at a consistent rate. When we replay the movie, the spinner spins at a constant rate.

Note that the model only shows what's happening in the view; it doesn't show monitors updating, and if the model had any plots in it, they wouldn't be shown either. That's because the code uses the movie-grab-view command, which only includes the view in the model. You can substitute movie-grab-interface; then the whole interface tab is grabbed.

THINGS TO TRY

A different way of making a movie, besides a procedure like make-movie, is to use BehaviorSpace. BehaviorSpace is a tool built into NetLogo that lets you set up automated model runs. Usually BehaviorSpace is used to do many model runs in which you experiment with different settings in a model, but it's also possible to use it to set up a single run in order to make a movie.

This model includes a sample BehaviorSpace "experiment setup" which makes a movie, just like the make-movie procedure. To try it, choose BehaviorSpace on the Tools menu. In the dialog that opens you'll see an experiment called "make movies". Select that experiment and hit the "Run" button. Background runs in parallel BehaviorSpace experiment can't make movies, so change the "Simultaneous number of runs" setting to 1, disabling background runs, and hit "OK". The model will run three times and a movie files will be generated each time. The behaviorspace-run-number primitive is used to give each movie a different name.

If you want to see how the experiment was set up, select the experiment in the BehaviorSpace dialog and press the "Edit" button. You'll notice that:

the setup commands include movie-start and movie-grab-view
the go commands include movie-grab-view
the final commands include movie-close

Together, those commands make a complete movie.

Since it isn't a real experiment, the setup does not vary any variables, and it does not use any reporters to measure the run.

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

breed [ birds bird ]
breed [ spinners spinner ]

turtles-own [ age ]

;; makes a movie of the model; stops when there are 3000 turtles
;; and exports movie to a file

to make-movie

  ;; prompt user for movie location
  user-message "First, save your new movie file (choose a name ending with .mov)"
  let path user-new-file
  if not is-string? path [ stop ]  ;; stop if user canceled

  ;; run the model
  setup
  movie-start path
  movie-grab-view
  while [ count turtles < 3000 ]
    [ go
      movie-grab-view ]

  ;; export the movie
  movie-close
  user-message (word "Exported movie to " path)
end

to setup
  clear-all
  create-birds 1
  create-spinner
  reset-ticks
end

to go
  ask birds
  [ wander
    grow-old
    reproduce ]
  tick
  update-spinner
end

to grow-old
  set age age + 1
end

to wander
  rt random-float 90
  fd 1
end

to reproduce
  if (age > 10 and random 10 > 7)
      [ hatch 2
        [ set color color - 4 + random 10
          set age 0 ]
        die ]
end

;; make the spinner for the upper right hand corner

to create-spinner
  create-spinners 1
  [ set shape "clock"
    setxy (max-pxcor - 3) (max-pycor - 3)
    set color gray - 1.5
    set size 6
    set heading 0
    set label 0 ]
end

to update-spinner
  ask spinners
  [ set heading ticks * 30
    set label ticks ]
end


; Public Domain:
; To the extent possible under law, Uri Wilensky has waived all
; copyright and related or neighboring rights to this model.
