Plot Smoothing Example

2 collaborators

Uri Wilensky (Author)

Ed Hazzard (Team member)

WHAT IS IT?

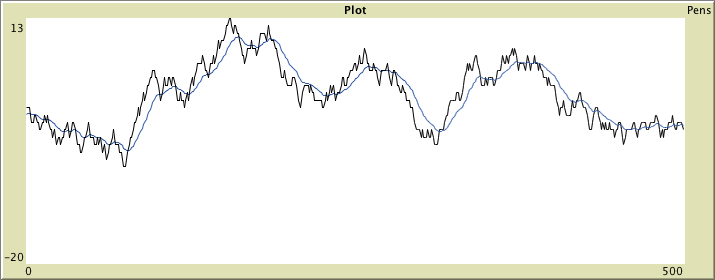

This code example shows you how to plot a "smoothed" version of a jagged line. When you run the model, the black line is the original line, and the blue line is the smoothed version.

The amount of smoothing is controlled by the SMOOTHNESS slider.

The black line is generated by doing a one-dimensional random walk.

THINGS TO NOTICE

The very simple method used to do smoothing causes the smoothed line to lag a bit behind the original line, that is, it appear shifted to the right.

CREDITS AND REFERENCES

Thanks to Ed Hazzard for suggesting this example.

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

globals [n smoothed]

to setup
  clear-all
  set n 0
  set smoothed 0
  reset-ticks
end

to go
  ;; the variable N does a random walk
  set n n + one-of [-1 0 1]

  tick

  ;; Here's where we calculate the smoothed version of N.
  ;; This one line is the heart of the whole example.
  set smoothed smoothness * smoothed + (1 - smoothness) * n
end


; Public Domain:
; To the extent possible under law, Uri Wilensky has waived all
; copyright and related or neighboring rights to this model.
